DEXTRA GROUND ENGINEERING PRODUCTS
Outstanding Results
RHE24 is proud to be an agent for the full range of Dextra ground engineering products in Australia & New Zealand.
​
About DEXTRA GROUP:
Established in 1983, Dextra is an ISO-certified leading manufacturer and distributor of engineered construction products for the building and civil industries.
For the past fifteen years they have developed a unique range of high-performance bar systems composed of both steel and composite materials (FRP), suitable for a variety of applications in ground anchoring, concrete tensioning, roof and facade support.
Moreover, Dextra has revolutionized the ground engineering industry with the creation of the "Soft Eye": an innovative application of cut-able Glass Fiber Reinforced Polymer (GFRP) to allow Tunnel Boring Machines (TBM) to easily go through diaphragm walls and secant piles.
Download the Dextra Ground Engineering Brochure HERE and see the NEWS.
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEEP FOUNDATION

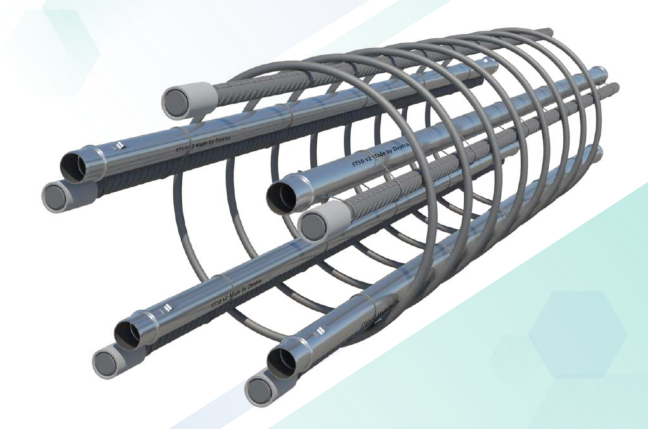

SONITEC™ Reservation Tubes for pile testing
Invented by Dextra to provide cost-effective and easily-installed tubes for cross-hole sonic logging testing of foundation elements.
​
SONITEC™ V2
Also known as minipiles, micropiles are deep foundation elements made of high strength, small-diameter steel casing and/or threaded bars.
Micropiles can be used as a temporary or a permanent solution. They can work in tension, compression or both.
DEXTRA
Steel I GRFP
DEXTRA tunnel
DEXTRA
SOIL RETENTION & STABILISATION
Dextra's range of ground anchors, rock bolts and soil nails make earth retention easy in any ground.
Products include:
ASTEC™ GFRP Rock-Bolt
From steel to FRP, from temporary and permanent applications: a wide range of rock bolts to cover all specifications and customer needs.
Download Brochure Below
GEOTEC™ lattice Girder
GEOTEC lattice girder systems are lightweight, three-dimensional curved steel frames which are composed of main bars, secondary bars, connection plates, foot plates and stiffeners.
Download Brochure Below

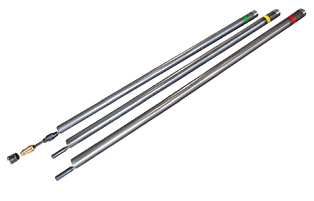

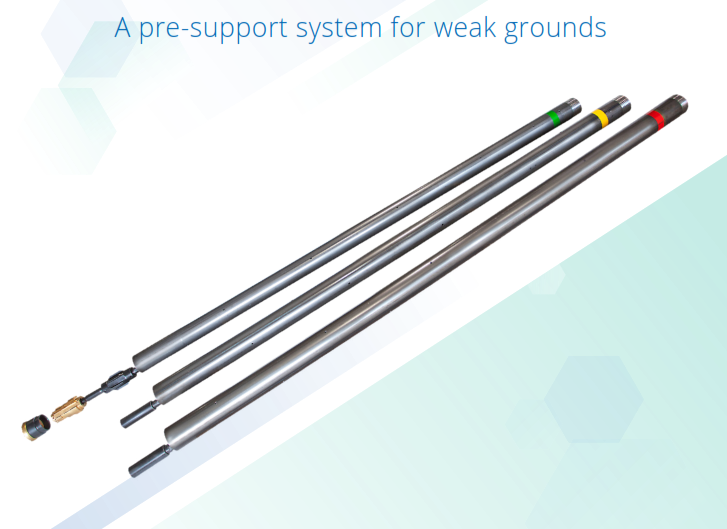

GEOTEC™ Umbrella Pipe
Umbrella pipe system is a pre-support in soft and weak ground conditions. The system comprises of steel pipes installed from the tunnel face to form a roof to stabilize the tunnel headings. By distributing the load in longitudinal direction, it can decrease deformation during excavations.
Download Brochure Below
GEOTEC™ Steel Combination Bolt
Steel Combination Bolt is suitable for the most stringent requirements. A mechanical bolt combined with a corrugated pipe and a double grout layer all along tendon to provide both high bonding and protection against corrosion (similar to Double Corrosion Protection / DCP).
Download Brochure Below
GEOTEC™ Expandable Friction Bolt
Expandable Friction Bolt (Expansion bolt) is a bolt made of a deformed steel tube which is expanded at the end of installation by injecting high-pressure water.
Download Brochure Below
TUNNELLING AND MINING
ASTEC™ Carbon Rod & Tape
RHE24 is proud to be a supplier of retrofit structural solutions based on CFRP..
Download Brochure Below
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEXTRA
DEXTRA
Marine Tie Bars System
MARINE TIE BARS SYSTEM Tie Bars are used in port and harbour construction to anchor waterfront structures. Steel grades from 355 to 700 N/mm² in yield strength, and thread diameters from M48 to M162. Different standard designs of articulated joint are available, including swivel plates, captive nuts and ball cages, to ensure the project requirements are fully accommodated. Anchorages can be made compatible with all sheet pile profiles, combi walls and concrete diaphragm walls. For projects using sheet piles, Dextra can also design and prefabricate waling beam systems with waling bolts to provide a complete anchoring system which will ensure full compatibility and consistency with our tie bars systems.
.png)
Marine Tie Bars System
Download Brochure Below
